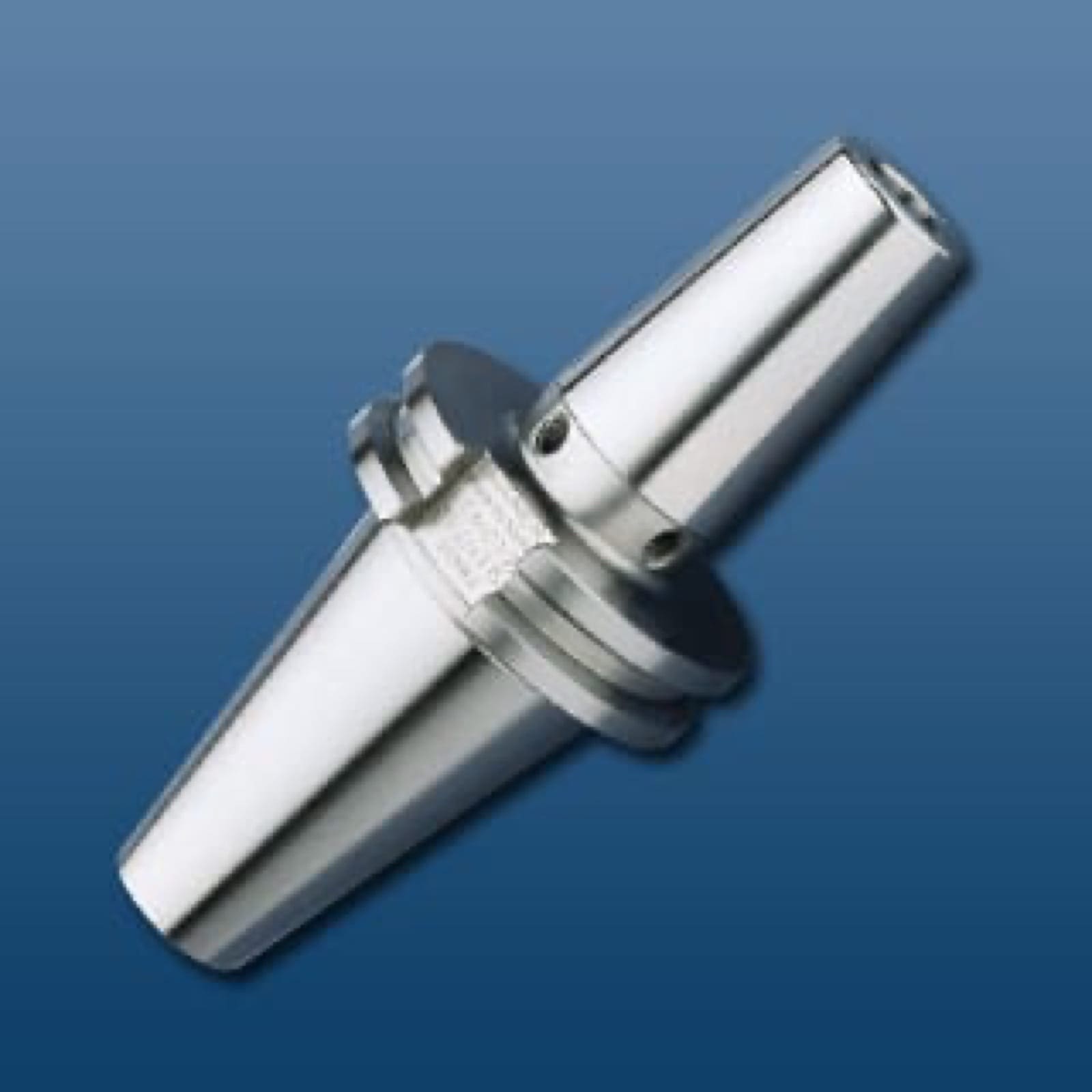

DIN50 Shrink Fit Toolholder Extra Long
£354
DIN50 Shrink Fit Toolholder
Range
Features
Materials & Applications
Range

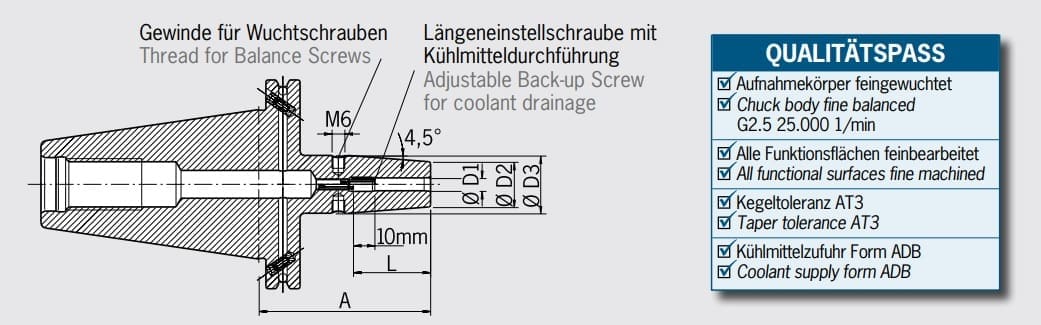

For technical drawing downloads click on the Item # link
| Item # | D1 | D2 | D3 | A | L | Price | Stock | Quantity |
|---|---|---|---|---|---|---|---|---|
| 50.442.06 | 6 | 21 | 27 | 160 | 36 | £361.00 | Available on back-order | |
| 50.442.08 | 8 | 21 | 27 | 160 | 36 | £361.00 | Available on back-order | |
| 50.442.10 | 10 | 24 | 32 | 160 | 42 | £361.00 | Available on back-order | |
| 50.442.12 | 12 | 24 | 32 | 160 | 47 | £361.00 | Available on back-order | |
| 50.442.14 | 14 | 27 | 34 | 160 | 47 | £361.00 | Available on back-order | |
| 50.442.16 | 16 | 27 | 34 | 160 | 50 | £373.00 | Available on back-order | |
| 50.442.18 | 18 | 33 | 42 | 160 | 50 | £373.00 | Available on back-order | |
| 50.442.20 | 20 | 33 | 42 | 160 | 52 | £373.00 | Available on back-order | |
| 50.442.25 | 25 | 44 | 53 | 160 | 58 | £386.00 | Available on back-order | |
| 50.442.32 | 32 | 44 | 53 | 160 | 58 | £386.00 | Available on back-order |
Features
DIN50 Shrink Fit Toolholder
Materials & Applications
